Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V
The pole-mounted transformers produced by WINLEY ELECTRIC can meet the standards of IEEE/ANSI/DOE/CSA and IEC, and have been exported to North America, Central and South America and other markets in large quantities. The rated capacity of single-phase pole-mounted transformers ranges from 10 kVA to 333 kVA, and the rated capacity of three-phase pole-mounted transformers ranges from 30 kVA to 500kVA.
structure
Main data
| Transformer Configuration | Liquid Filled Pole Mounted |
| Transformer Polarity Type | Subtractive |
| Phase | Single Phase |
| Capacity | 125 KVA |
| Primary Voltage | 34500GrdY/19920 |
| Primary Voltage Class | 35 kV Class |
| Primary Phasor | Grounded Wye |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Dimensions* | 43.31''-W x 35.04''-D x 51.18''-H |
| Total Weight (Liquid Filled)* | 1542 lbs |
| Efficiency | 99.10% |
| No Load Loss (in watts) | +/- 455W |
| Full Load Loss (in watts) | +/- 1,833W |

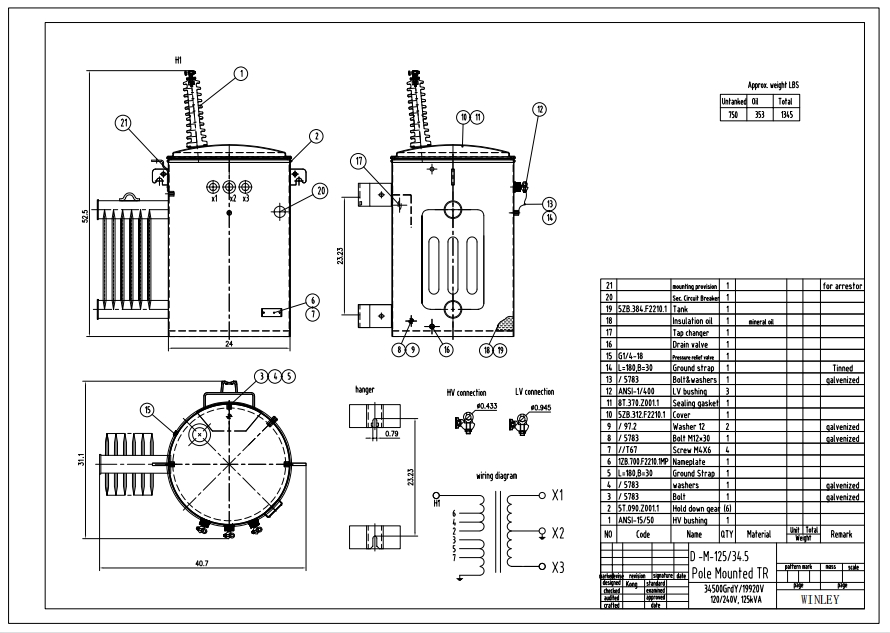

Product drawings
