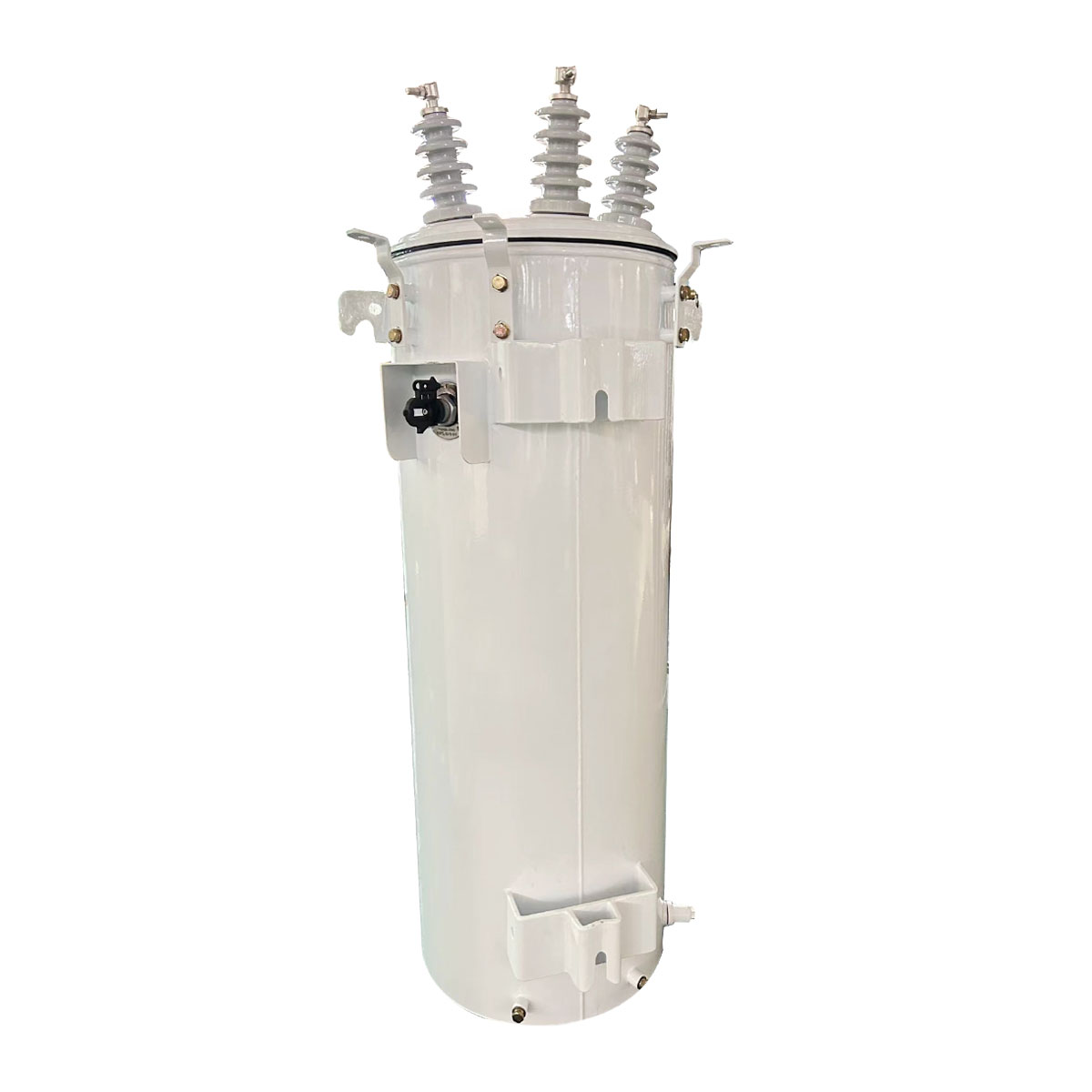

45KVA Three Phase Power Pole Mounted Distribution Transformer Oil Immersed 12000V
WINLEY’s Three Phase Pole Mounted Round Tank is designed for service in areas where three phase power is needed, but space is limited. It provides a cleaner looking service with lower installation cost than a bank of three single phase transformers. Triplex core/coil is the choice for serving electric motor loads especially with frequent motor starts.
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Transformer Polarity Type | Subtractive |
| Phase | Three Phase |
| Capacity | 45 KVA |
| Primary Voltage | 12000V |
| Secondary Voltage | 208Y/120 (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Impedance | 3.75% |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Pulse Drive Rating | N/A |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Dimensions* | 24''-W x 29''-D x 65''-H |
| Efficiency | 98.70% |
| Total Load Loss (in watts) | +/- 684W |

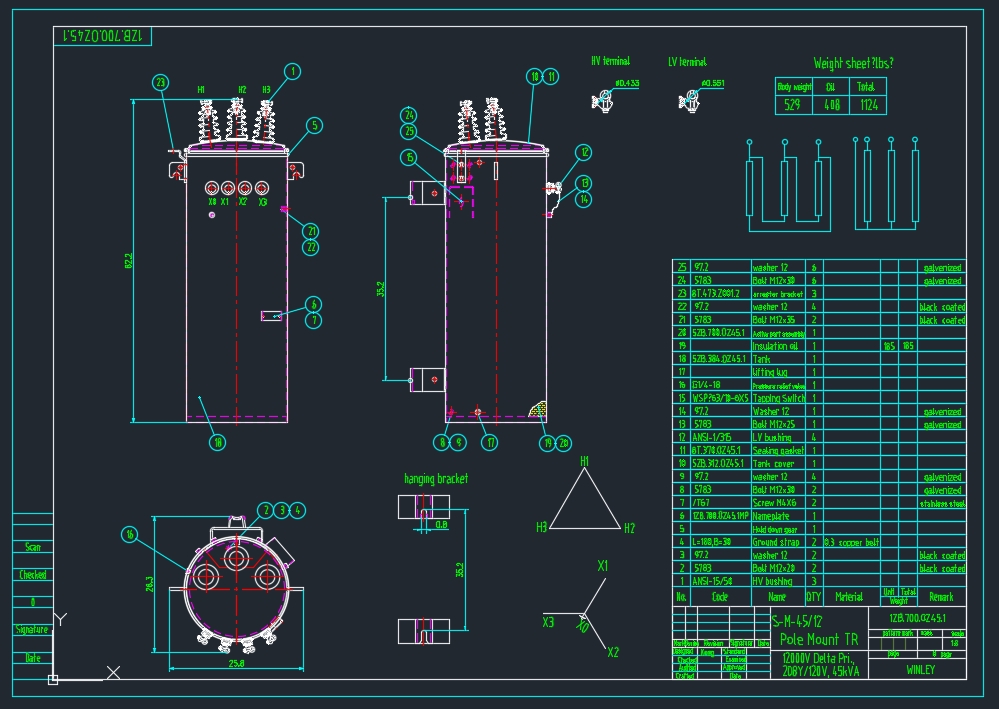

Drawing
Standard Features
Meets or exceeds current IEEE, NEMA standards.
Triplex core/coil design.
Wet process high voltage bushings.
Molded polymer low voltage bushings.
Tin plated bronze terminals suitable for copper or aluminum connection.
Two tank grounding provisions.
Lightning arrester mounting provisions.
1/2” drain plug.
Automatic pressure relief device.
Mineral oil.
Mild steel tank and bolted cover.
Laser engraved nameplate.
